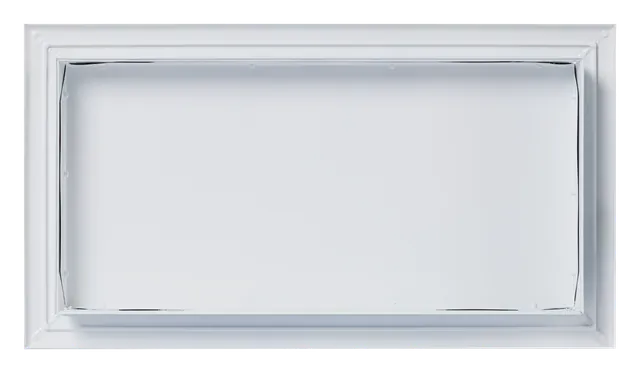

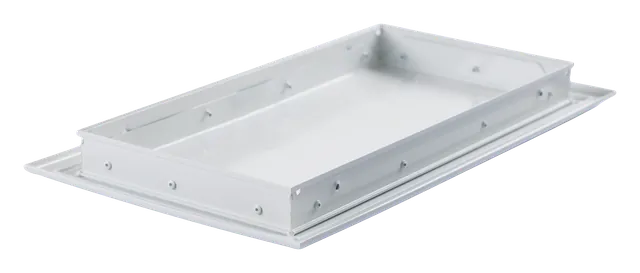

Product appearance may vary with selected size and finish.
Access Panels & Accessories

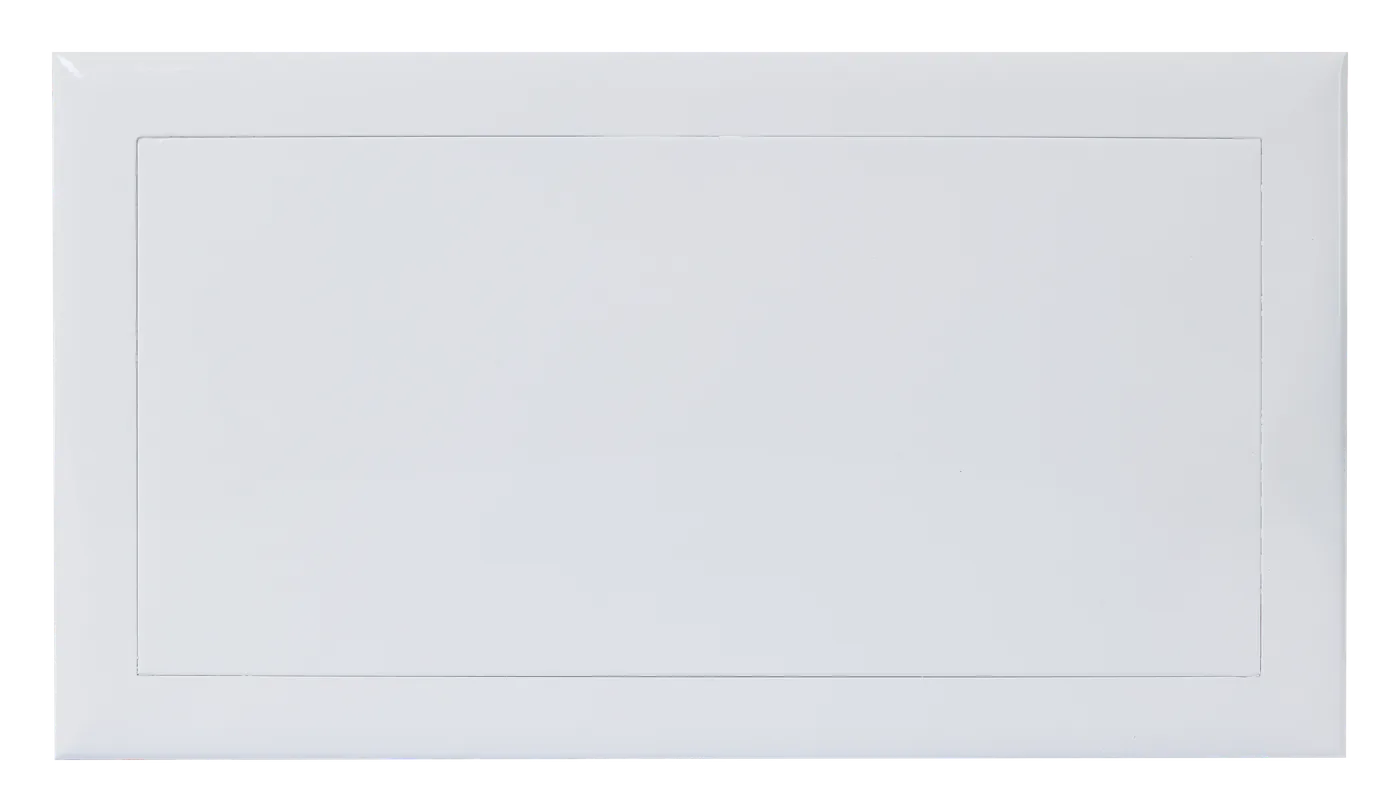

KACP/KACP-H
Access Panel
Ceiling or Wall inspection/maintenance door (Non-airflow panel)
Available types
- Material
- Aluminium frame with a Galvanized Steel central door sheet
- Application
- Ceiling or Wall inspection/maintenance door (Non-airflow panel)
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
Need a special size or finish? Our team can help.
Specifications
- Material
- Aluminium frame with a Galvanized Steel central door sheet
- Application
- Ceiling or Wall inspection/maintenance door (Non-airflow panel)
- Functional Features

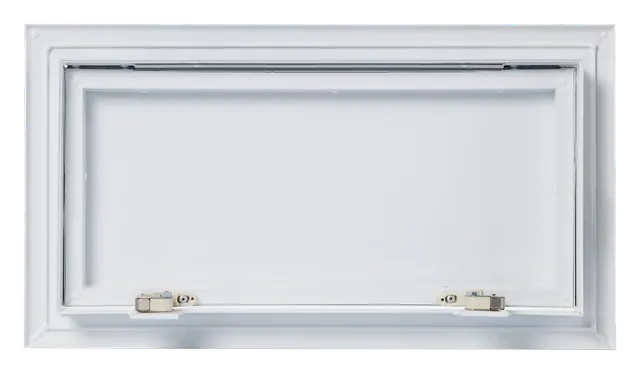

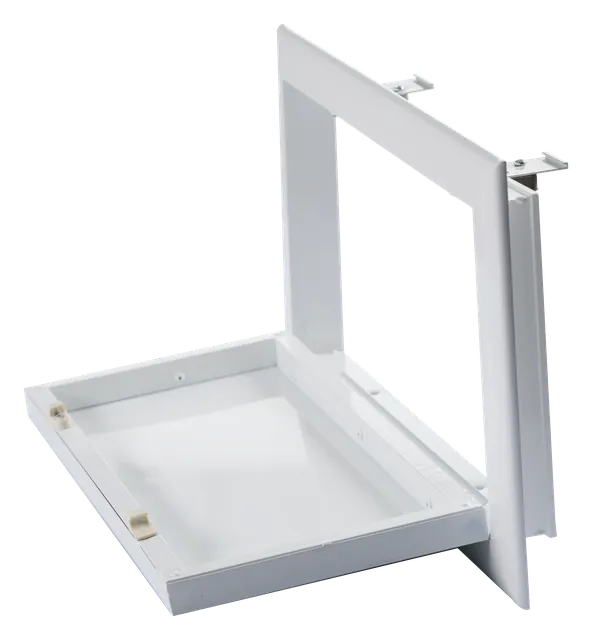

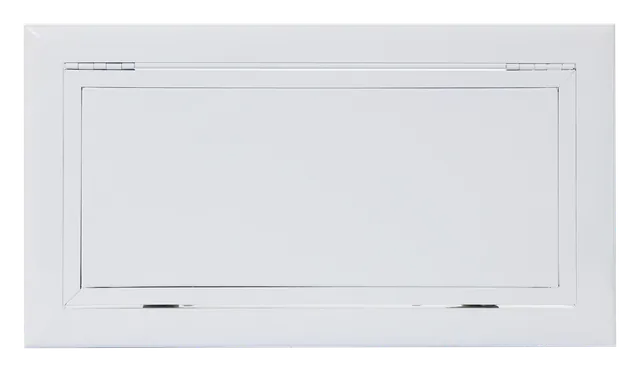

- Hinged Latch System: Features a hidden hinge on one side and a push-release/lock latch on the other. Allows users to simply press to pop open the door for immediate internal access
- Design Intent
- Designed to cover rough ceiling cutouts with a clean, professional flush door, providing a seamless finish while allowing quick access to hidden valves, fan coil units (FCU), and electrical wiring. • Ideal Locations: Installed directly under hidden ducted fan coil units, water valves, or electrical junction boxes.
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
Product dimensions
Scroll the table to view all dimensions.
| Opening Size A | Neck Size B | Height C | Face Size D | Neck to Edge Distance E |
|---|---|---|---|---|
| 12”x12” | 292 | 35 | 352 | 30 |
| 14”x14” | 343 | 35 | 403 | 30 |
| 16”x16” | 394 | 35 | 454 | 30 |
| 18”x18” | 445 | 35 | 505 | 30 |
| 20”x20” | 495 | 35 | 555 | 30 |
Please confirm dimensions and installation clearances with our team before ordering.
