Diffusers & Supply Grilles
KSCD

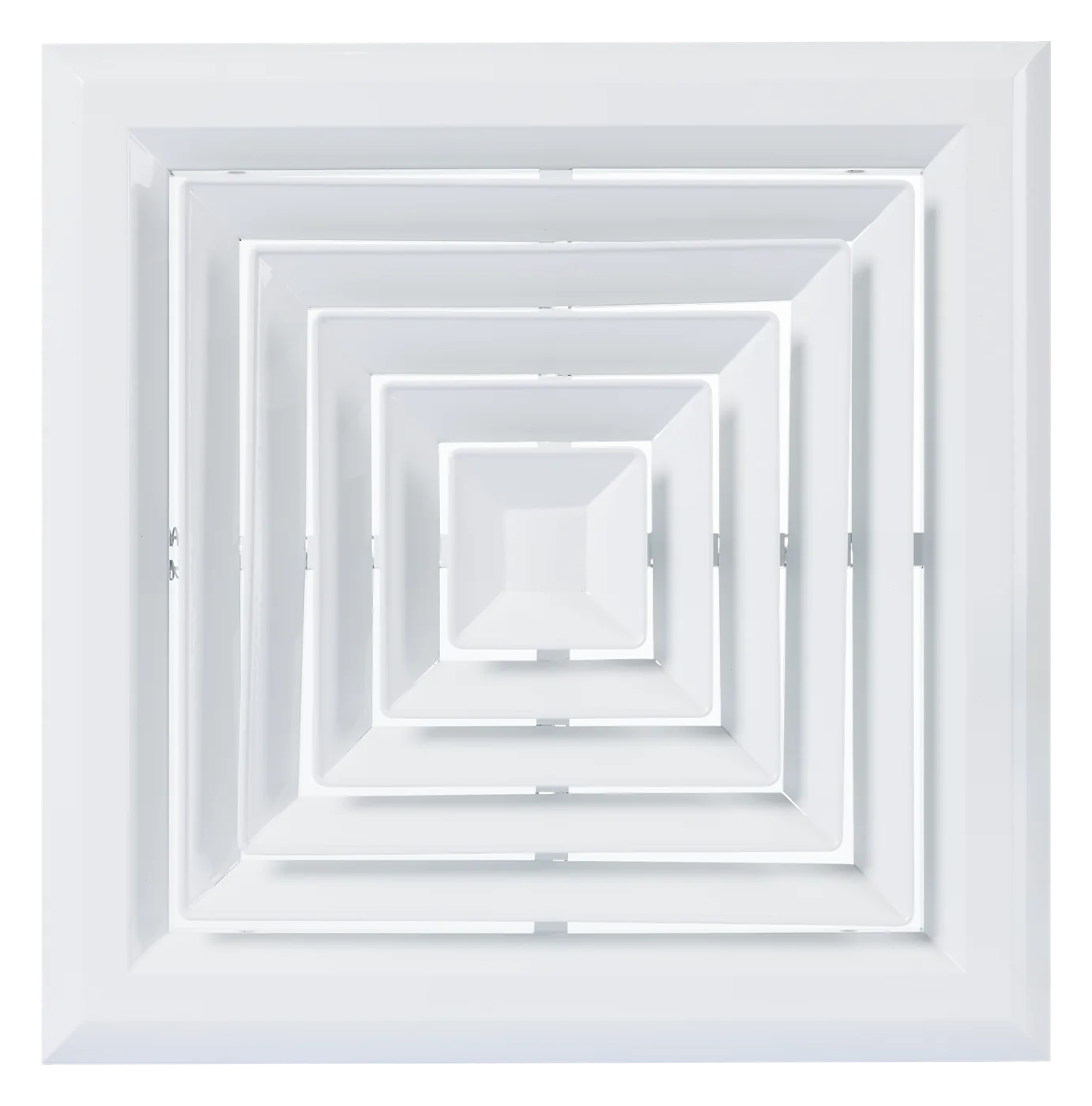

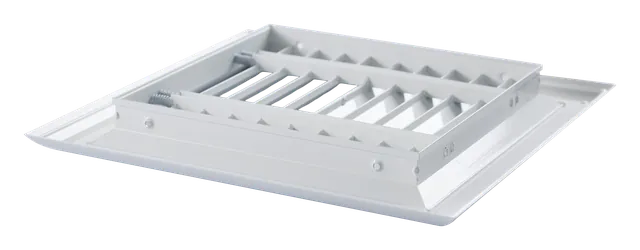

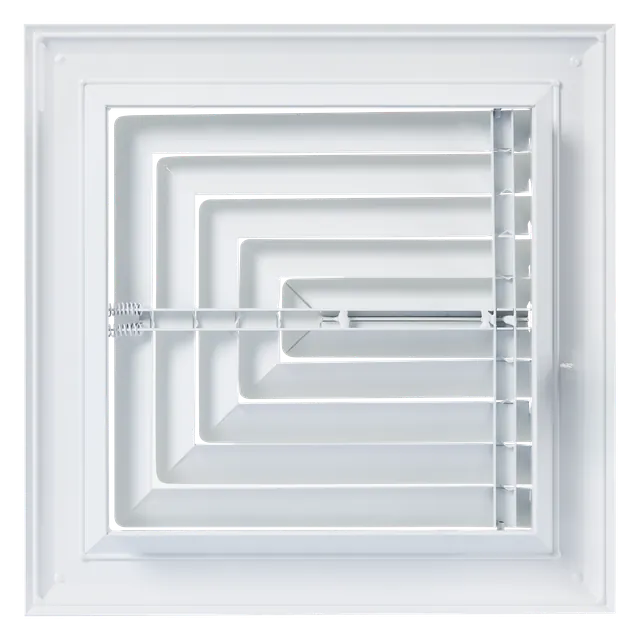

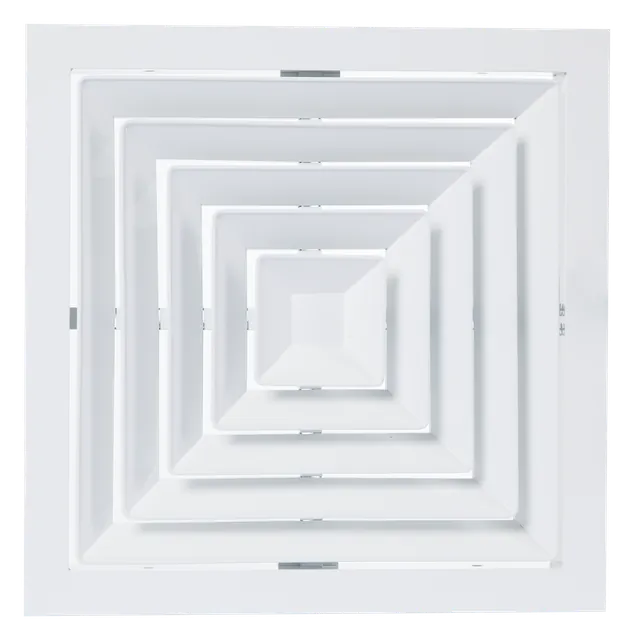

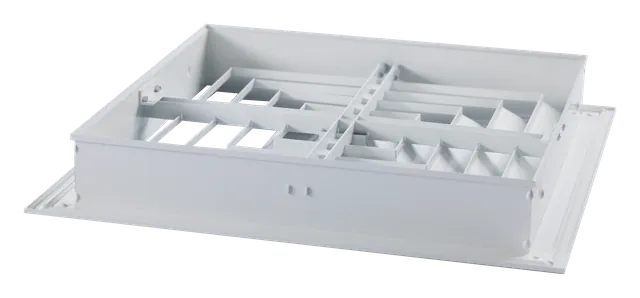

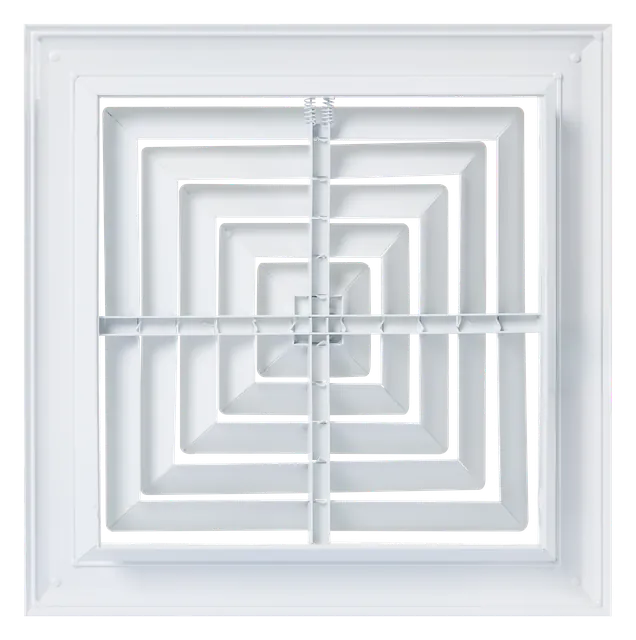

Square Ceiling Diffuser
Supply Air (Ceiling Installation)
Available types
- Material
- Aluminium
- Application
- Supply Air (Ceiling Installation)
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
Need a special size or finish? Our team can help.
Specifications
- Material
- Aluminium
- Application
- Supply Air (Ceiling Installation)
- Functional Features

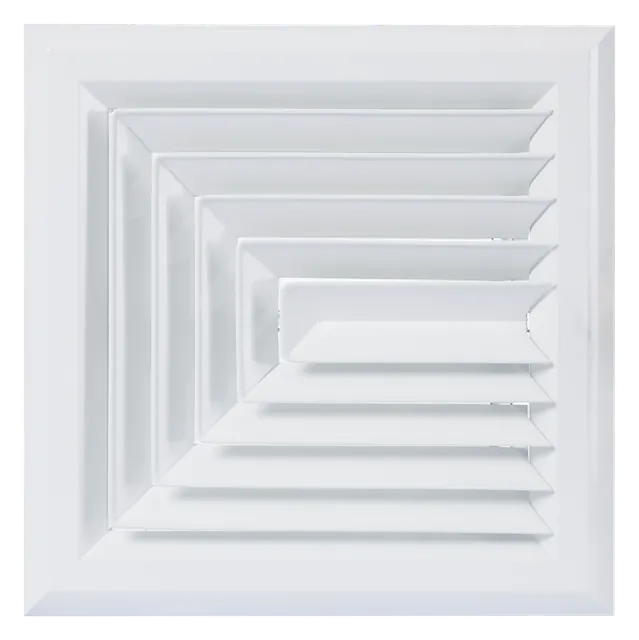

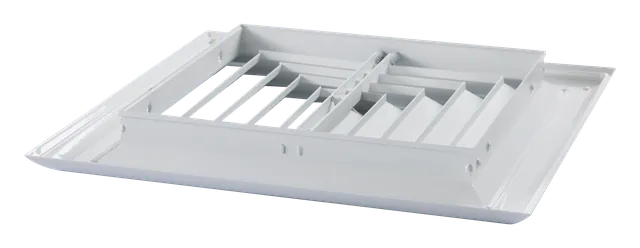

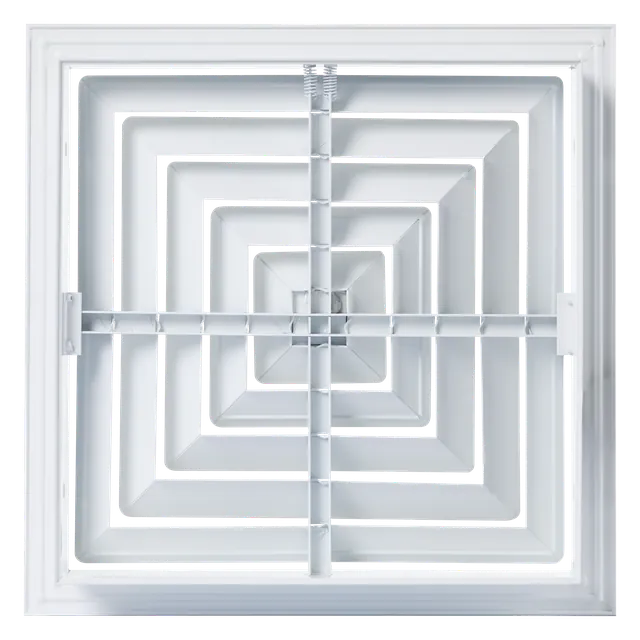

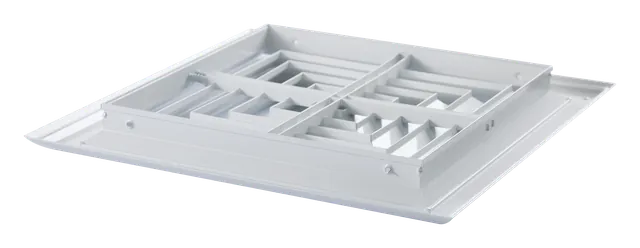

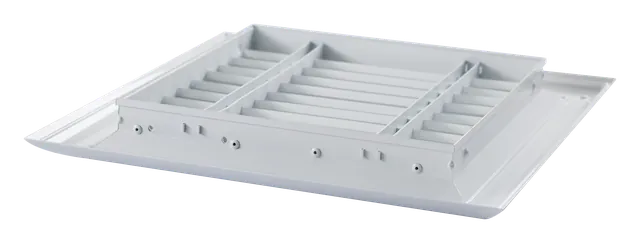

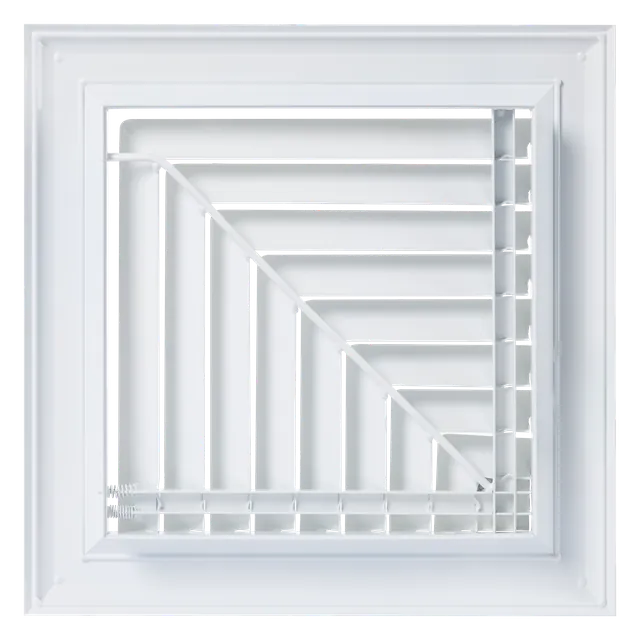

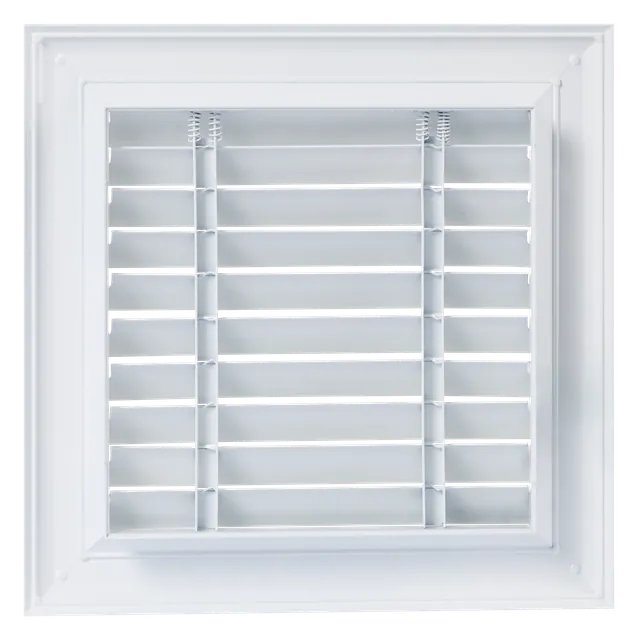

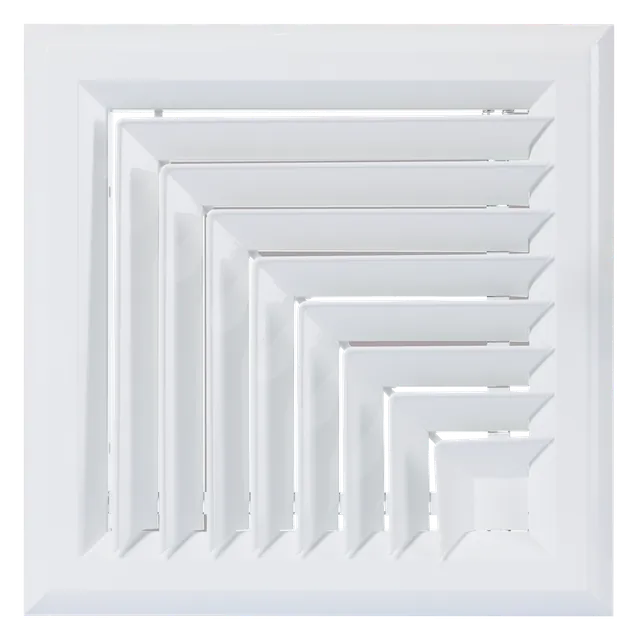

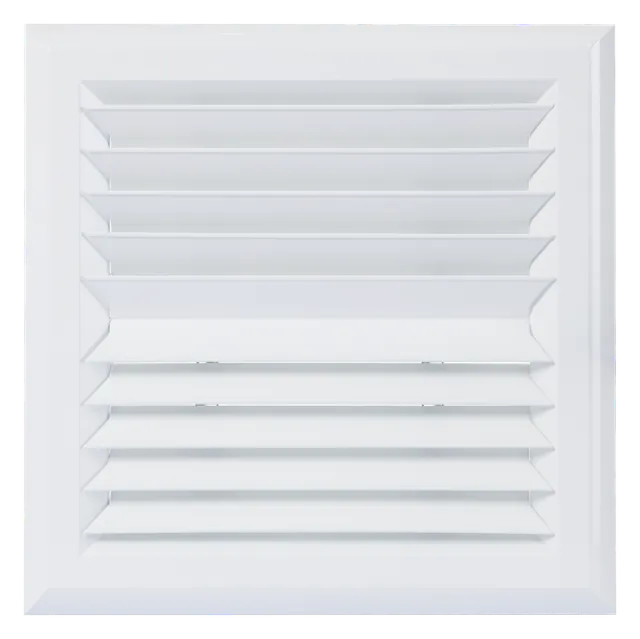

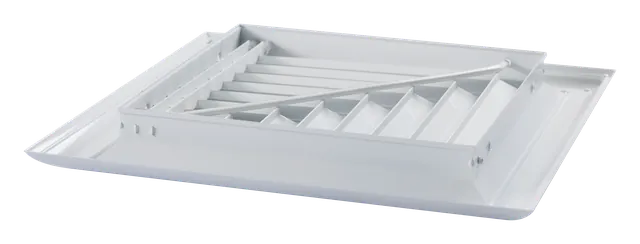

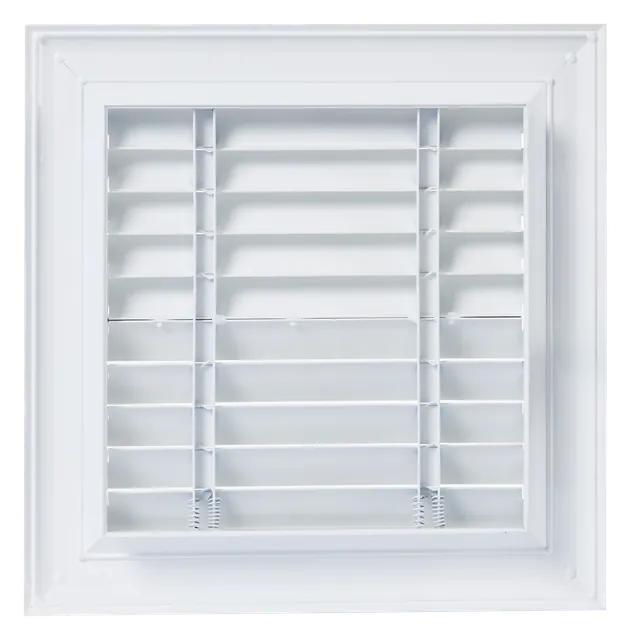

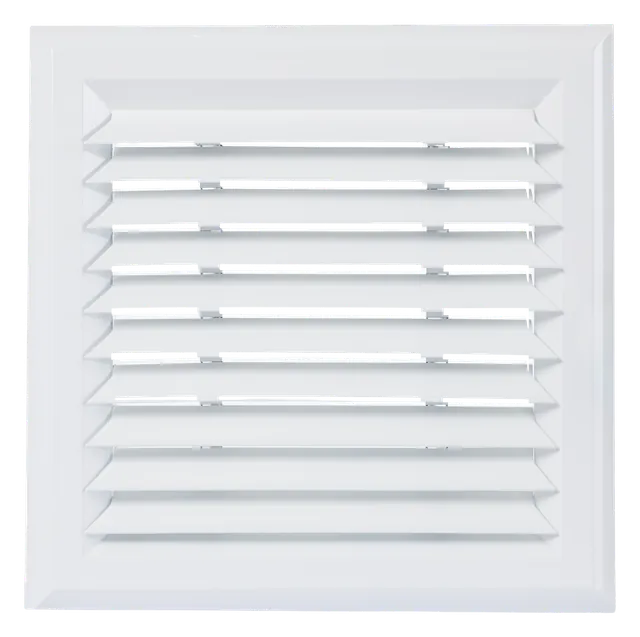

- 1, 2, 3, or 4-Way Directional Airflow • Frame Profile Options: 1. Flat Frame: A completely flat, low-profile outer flange designed to sit perfectly flush against the ceiling for a modern, seamless look. 2. Beveled Frame (Standard sloped profile - as shown): A classic beveled outer flange that adds architectural depth and helps direct discharge air downward, protecting the ceiling from localized dust smudging.
- Design Intent
- Uniform 4-Way Air Distribution • Engineered for balanced airflow across square-shaped areas • Ideal for: Standard offices, retail shops, corridors, and general commercial spaces.
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
- Optional Accessory
- Opposed Blade Volume Damper (OBV)
Product dimensions
Scroll the table to view all dimensions.
| Opening Size (inch) A | Neck Size (inch) B | Height (inch) C | Face Size (inch) D | Neck to Edge Distance (inch) E | Height w/OBV (inch) |
|---|---|---|---|---|---|
| 6x6 | 5 ½ | 1 ½ | 9 ⅛ | 1 ⅞ | 2 ⅞ |
| 8x8 | 7 ½ | 1 ½ | 11 ⅛ | 1 ⅞ | 2 ⅞ |
| 10x10 | 9 ½ | 1 ½ | 13 ⅛ | 1 ⅞ | 2 ⅞ |
| 12x12 | 11 ½ | 1 ½ | 15 ⅛ | 1 ⅞ | 2 ⅞ |
| 14x14 | 13 ½ | 1 ½ | 17 ⅛ | 1 ⅞ | 2 ⅞ |
| 16x16 | 15 ½ | 1 ½ | 19 ⅛ | 1 ⅞ | 2 ⅞ |
| 18x18 | 17 ½ | 1 ½ | 21 ⅛ | 1 ⅞ | 2 ⅞ |
| 20x20 | 19 ½ | 1 ½ | 23 ⅛ | 1 ⅞ | 2 ⅞ |
Please confirm dimensions and installation clearances with our team before ordering.
