Product appearance may vary with selected size and finish.
Air Control & Fire Dampers
VD

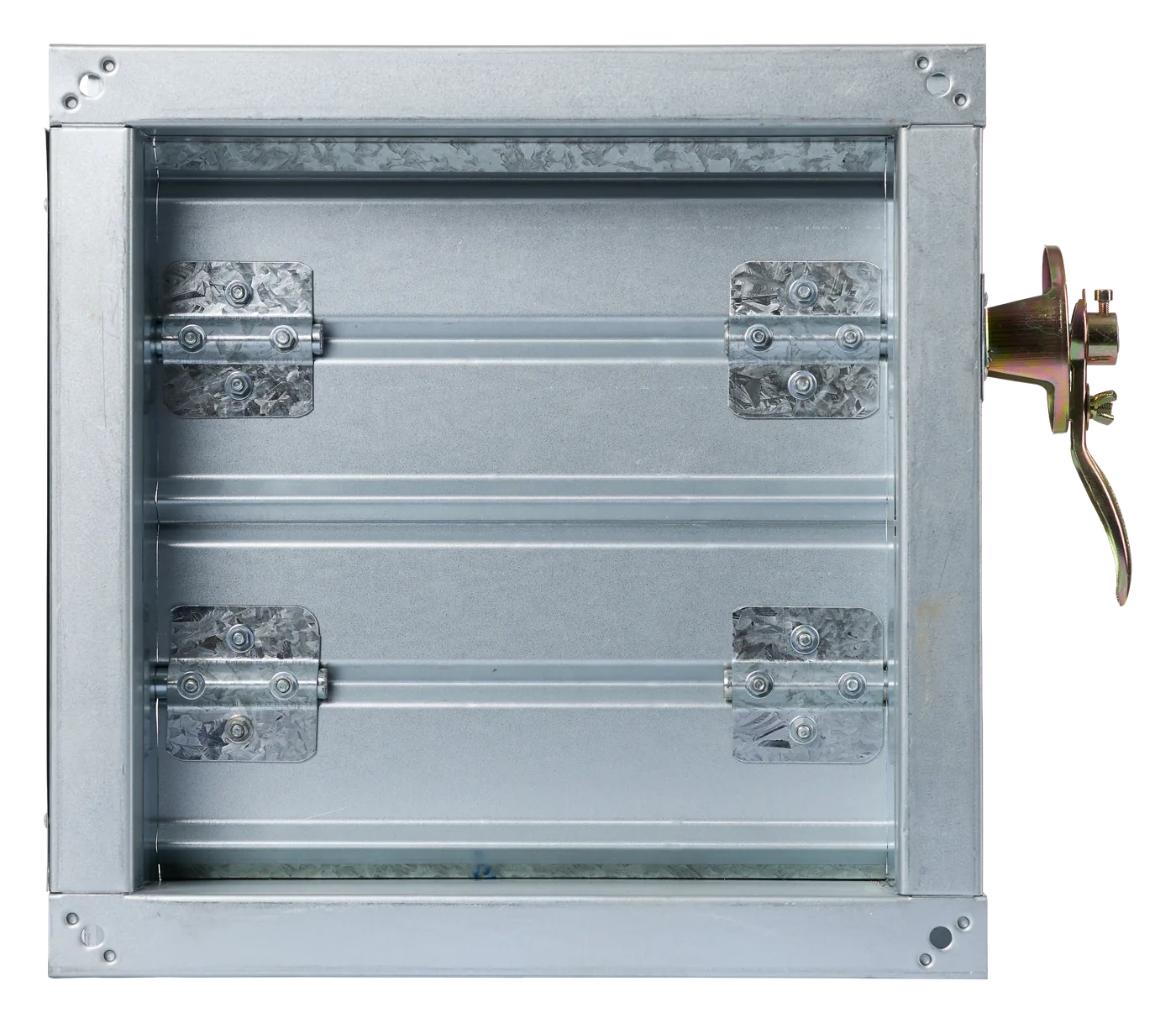

Square Volume Damper
Installed within rectangular duct systems to regulate, balance, or shut off airflow in zoning systems.
Available types
- Material
- Galvanized Steel Sheet, 0.9 mm thickness.
- Size
- Standard or Custom Sizes
Need a special size or finish? Our team can help.
Specifications
- Material
- Galvanized Steel Sheet, 0.9 mm thickness.
- Application
- Installed within rectangular duct systems to regulate, balance, or shut off airflow in zoning systems.
- Functional Features

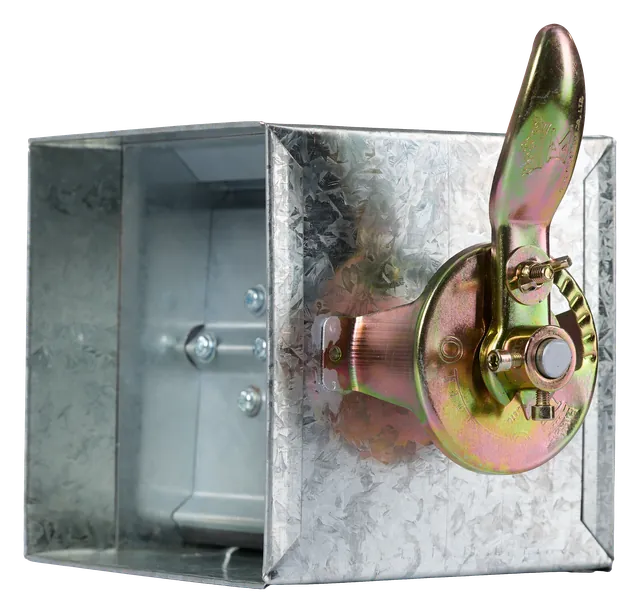

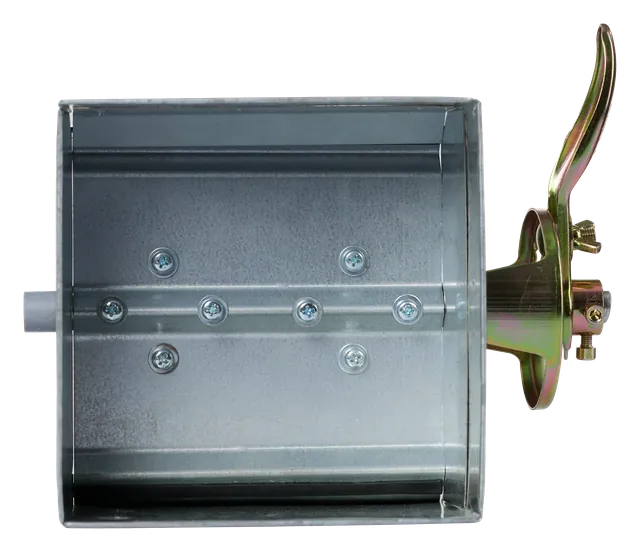

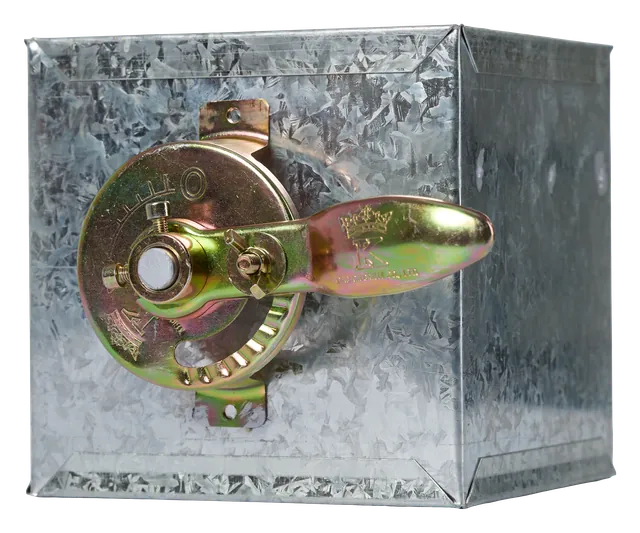

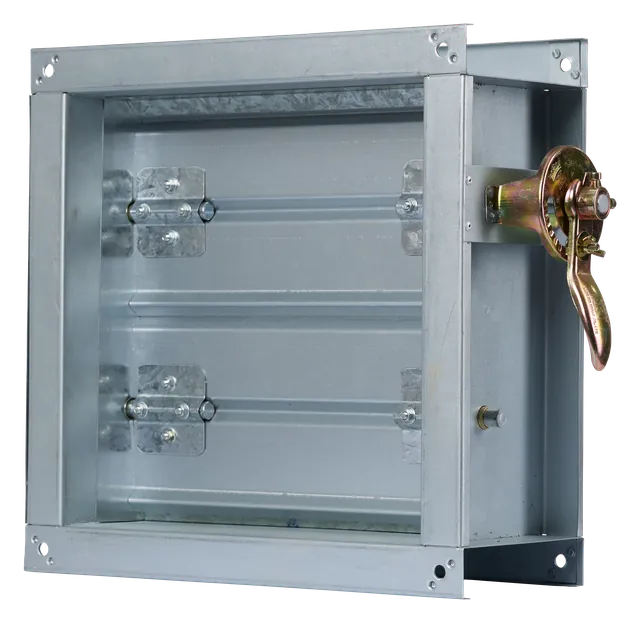

- Air volume control device for rectangular duct networks: • Features a manual side crank arm that allows precise adjusting, balancing, and locking of damper blade angles. • Heavy-duty casing and blades constructed from 0.9 mm thick galvanized steel sheet for maximum structural strength. • Available in both flanged frames and slip-in/sleeve connections to match various ductwork layouts.
- Design Intent
- Engineered to facilitate efficient air balancing and system pressure control across diverse building zones to optimize overall HVAC energy consumption. • Provides mechanical and testing technicians with an accessible, lockable interface for quick Testing, Adjusting, and Balancing (TAB) operations. • Ideal for: Commercial, industrial, and residential HVAC duct networks.
- Size
- Standard or Custom Sizes
