Product appearance may vary with selected size and finish.
Return & Exhaust Grilles

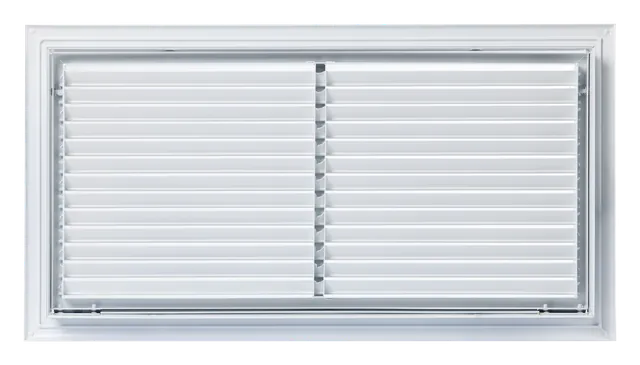

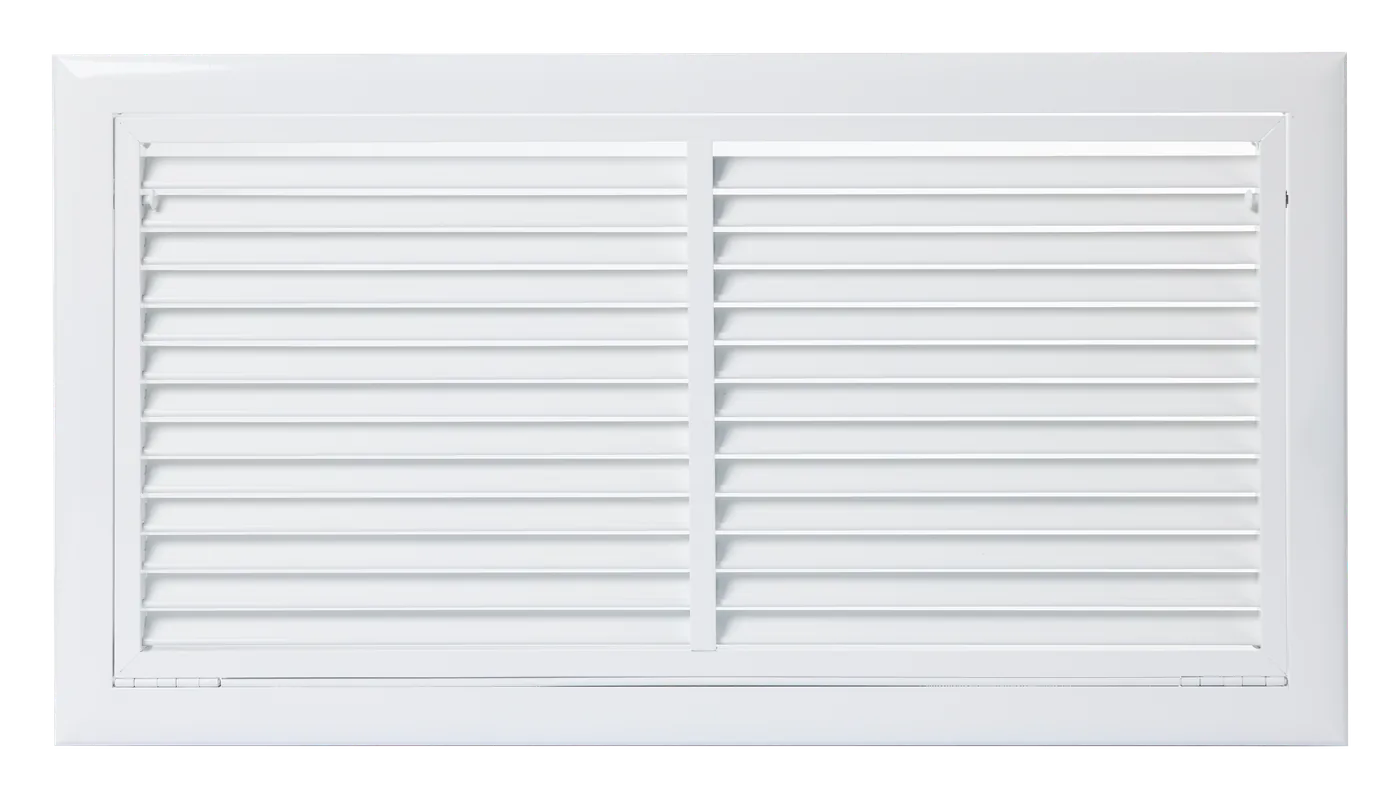

KRAG-R
Return Air Grille (Removable Type)
Return Air (Ceiling & Wall Installation)
- Material
- Aluminium
- Application
- Return Air (Ceiling & Wall Installation)
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
Need a special size or finish? Our team can help.
Specifications
- Material
- Aluminium
- Application
- Return Air (Ceiling & Wall Installation)
- Functional Features

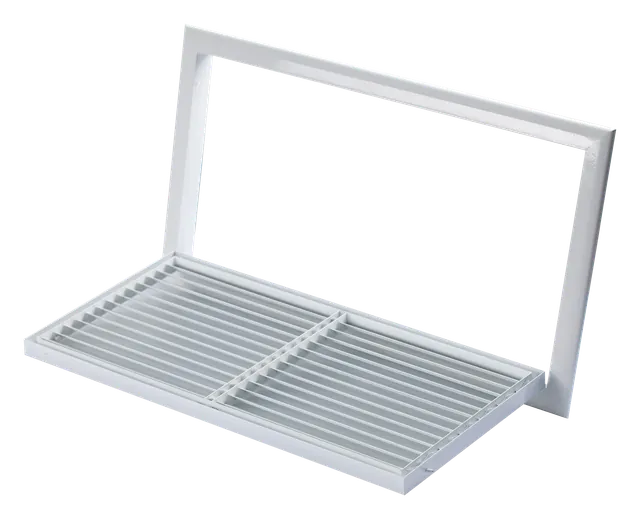

- Fixed Tear-Drop Blades (Low-Resistance) • Features stationary "Tear-Drop" shaped blades with 50% free area Fully Removable Core • Secured with 4 corner spring latches, allowing the core to be completely detached from the frame. • Facilitates deep cleaning of both the core and the internal duct area.
- Design Intent
- High-Efficiency Intake & Silent Operation • High Free Area (50%): Ensures high airflow volume with minimal static pressure loss • Aerodynamic blade shape reduces air turbulence and vibration noise Complete Access & Aesthetic Symmetry • Symmetrical frame design with no visible hinges for a cleaner look • Ideal Locations: Bathrooms, Kitchens, or areas requiring deep sanitation.
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
- Optional Accessory
- Aluminium Filter, Synthetic Filter, or Nylon Filter
Product dimensions
Scroll the table to view all dimensions.
In MM
| Opening Size A | Neck Size B | Height C | Face Size D | Neck to Edge Distance E |
|---|---|---|---|---|
| 4x4 | 90 | 35 | 150 | 30 |
| 6x6 | 140 | 35 | 200 | 30 |
| 8x8 | 191 | 35 | 251 | 30 |
| 10x10 | 241 | 35 | 301 | 30 |
| 12x12 | 292 | 35 | 352 | 30 |
| 14x14 | 343 | 35 | 403 | 30 |
| 16x16 | 394 | 35 | 454 | 30 |
| 18x18 | 445 | 35 | 505 | 30 |
| 20x20 | 495 | 35 | 555 | 30 |
Please confirm dimensions and installation clearances with our team before ordering.
