Diffusers & Supply Grilles
KVWSCD

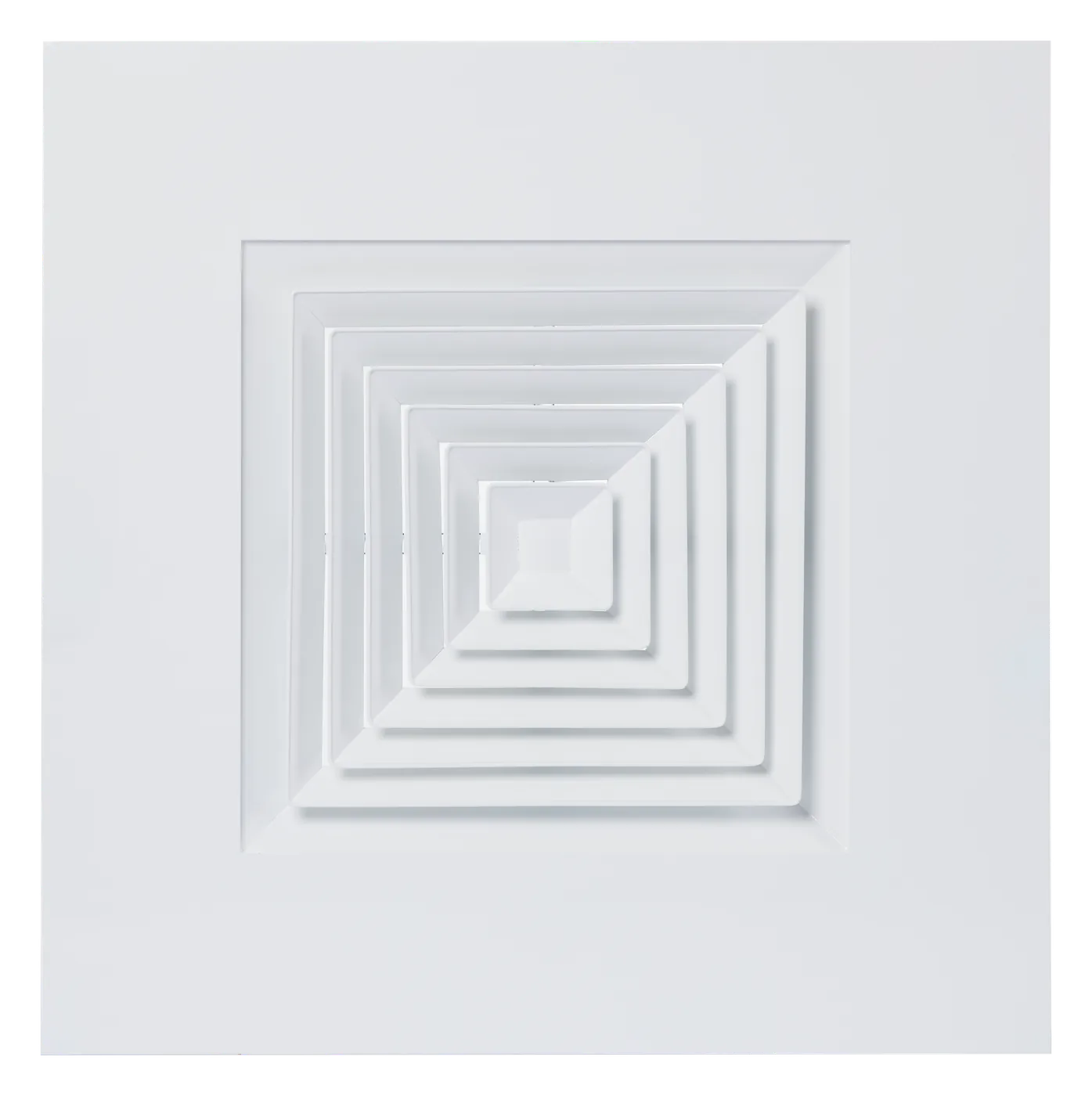

Square Ceiling Diffuser With Extra Wide Flat Frame
Supply Air (Ceiling Installation)
- Material
- Aluminium
- Application
- Supply Air (Ceiling Installation)
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
Need a special size or finish? Our team can help.
Specifications
- Material
- Aluminium
- Application
- Supply Air (Ceiling Installation)
- Functional Features
- 1, 2, 3, or 4-Way Directional Airflow Multi-directional air distribution with custom ultra-wide flat frame profiles: • Extra Wide Flat Frame: Features a highly customizable, heavy-duty flat outer flange that can be tailored to extreme widths (e.g., custom 10-inch wide flat frames). Engineered specifically to cover oversized ceiling structural openings or to create a bold, modern architectural border.
- Design Intent
- Engineered as a specialized architectural terminal that combines high-performance air distribution with a bold, structural border to seamlessly integrate with premium ceiling systems. • Provides a perfect aesthetic solution for hiding oversized ceiling cutouts or rough-in drywall imperfections while maintaining balanced, quiet airflow. • Ideal for: Premium commercial spaces, high-ceiling lobbies, renovation projects requiring coverage of existing larger ceiling openings, and modern minimalist interiors where the wide flat frame acts as a strong design statement.
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
- Optional Accessory

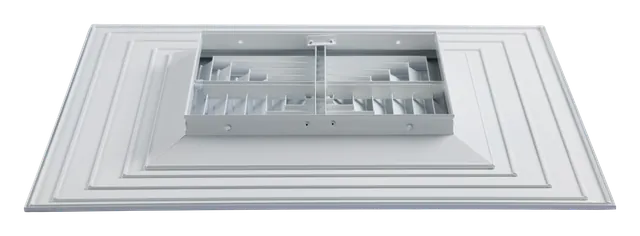

- Opposed Blade Volume Damper (OBV)
Product dimensions
Scroll the table to view all dimensions.
| Opening Size (inch) | Face Size (inch) | Neck Size (inch) | Height (inch) | Neck to Edge Distance (inch) | Height w/OBV (inch) |
|---|---|---|---|---|---|
| 6x6 | 9 ⅛ | 5 ½ | 1 ½ | 1 ⅞ | 2 ⅞ |
| 8x8 | 11 ⅛ | 7 ½ | 1 ½ | 1 ⅞ | 2 ⅞ |
| 10x10 | 13 ⅛ | 9 ½ | 1 ½ | 1 ⅞ | 2 ⅞ |
| 12x12 | 15 ⅛ | 11 ½ | 1 ½ | 1 ⅞ | 2 ⅞ |
| 14x14 | 17 ⅛ | 13 ½ | 1 ½ | 1 ⅞ | 2 ⅞ |
| 16x16 | 19 ⅛ | 15 ½ | 1 ½ | 1 ⅞ | 2 ⅞ |
| 18x18 | 21 ⅛ | 17 ½ | 1 ½ | 1 ⅞ | 2 ⅞ |
| 20x20 | 23 ⅛ | 19 ½ | 1 ½ | 1 ⅞ | 2 ⅞ |
Please confirm dimensions and installation clearances with our team before ordering.
