Diffusers & Supply Grilles
KADGV

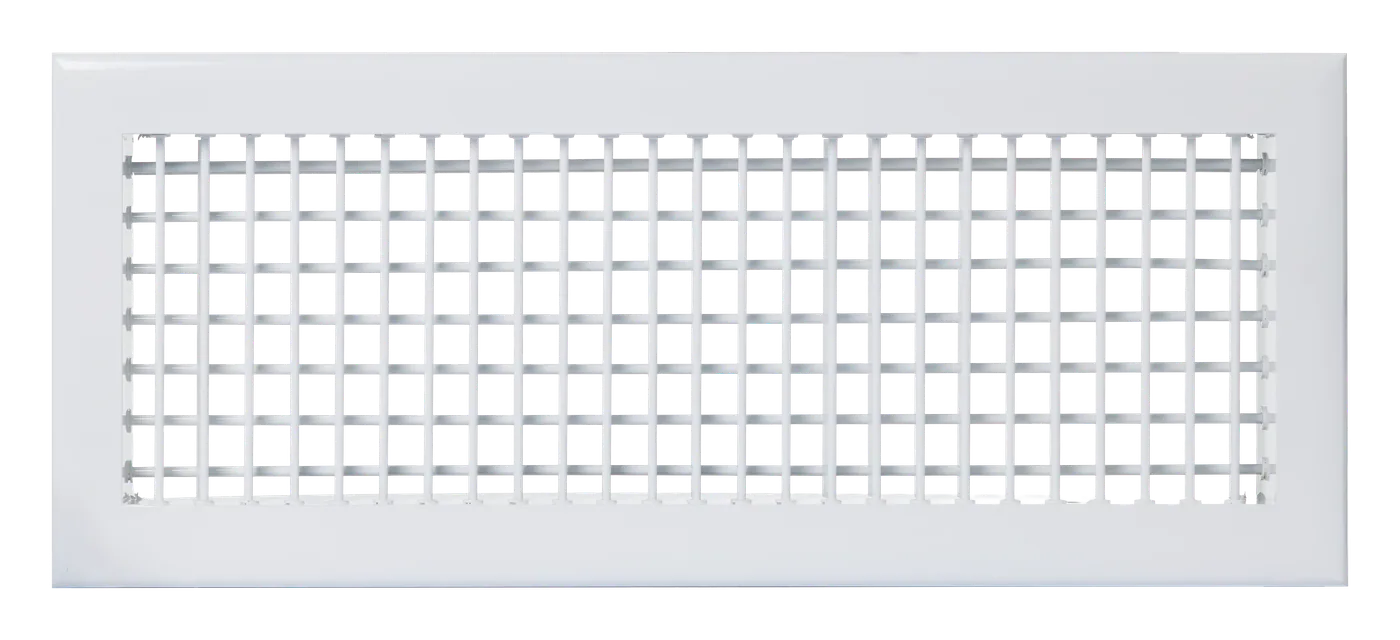

Double Deflection Air Grille (Vertical Front)
Supply Air (Wall & Ceiling Installation)
- Material
- Aluminium
- Application
- Supply Air (Wall & Ceiling Installation)
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
Need a special size or finish? Our team can help.
Specifications
- Material
- Aluminium
- Application
- Supply Air (Wall & Ceiling Installation)
- Functional Features
- Individually Adjustable Dual Layers - Front: Vertical (Left-Right adjustment) - Rear: Horizontal (Up-Down adjustment) Supports 2 structural configurations: 1. Fixed Type (non-removable core). 2. Open Type (push-release latch) allowing the center face to hinge down or detach for routine dust cleaning.
- Design Intent
- 4-Way Wide Area Coverage • Optimized for wide-angle airflow and side-to-side spread • Ideal for lobbies and large open-plan offices
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
- Optional Accessory
- Opposed Blade Volume Damper (OBV) for precise airflow adjustment
Product dimensions
Scroll the table to view all dimensions.
| All in mm | Opening Size A | Neck Size B | Height C | Face Size D | Neck to Edge Distance E | Height w/OBV |
|---|---|---|---|---|---|---|
| KADGV/KADGH คอเต็ม | Length x Width | Length x Width | 50 | (Length + 60mm) x (Width + 60mm) | 30 | 90 |
| KADGV/KADGH คอลด | Length x Width | (Length - 10mm) x (Width - 10mm) | 50 | (Neck Length + 60mm) x ( Neck Width + 60mm) | 30 | 90 |
Please confirm dimensions and installation clearances with our team before ordering.
