Product appearance may vary with selected size and finish.
Return & Exhaust Grilles

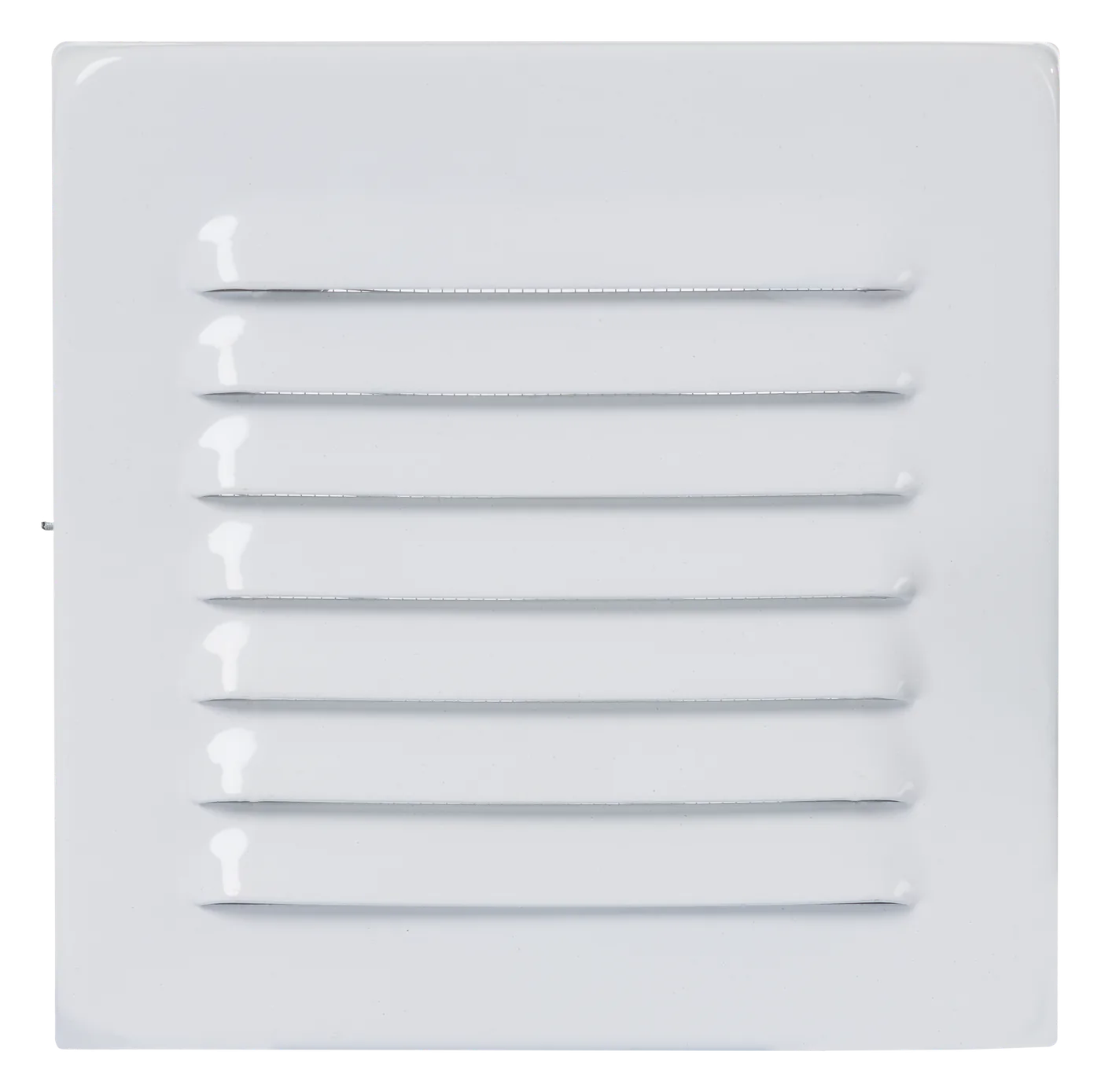

KDL-EAG
Surface-Mounted Ready-to-Use Duct Louver
Return Air or Exhaust ventilation for Wall or Ceiling installation.
- Material
- Aluminium
- Application
- Return Air or Exhaust ventilation for Wall or Ceiling installation.
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Optional Accessory
- Insect Screen
Need a special size or finish? Our team can help.
Specifications
- Material
- Aluminium
- Application
- Return Air or Exhaust ventilation for Wall or Ceiling installation.
- Functional Features

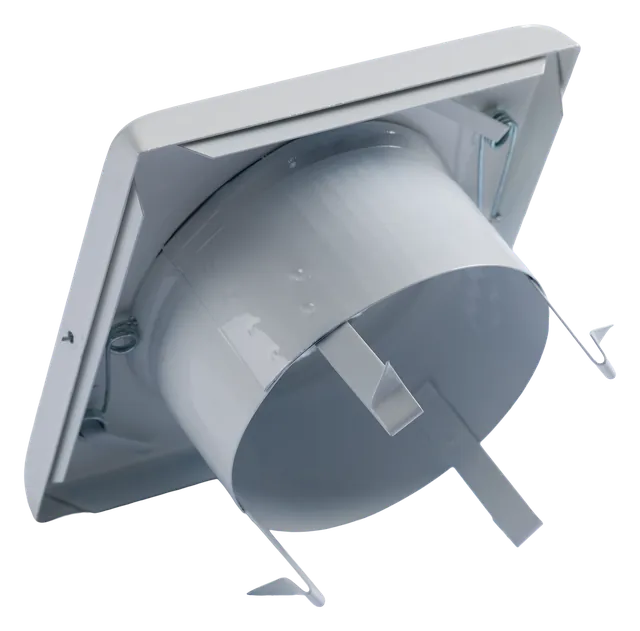

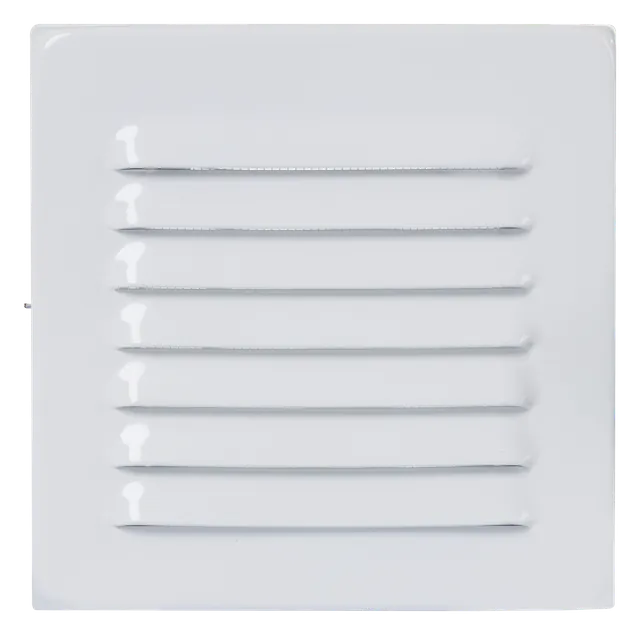

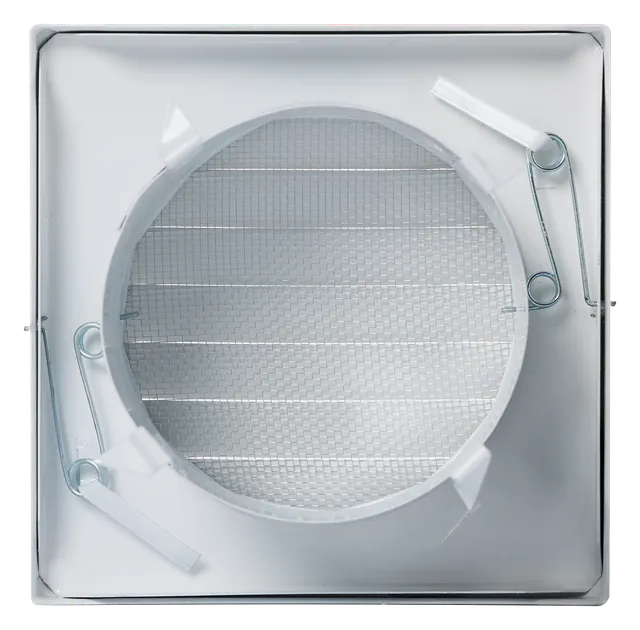

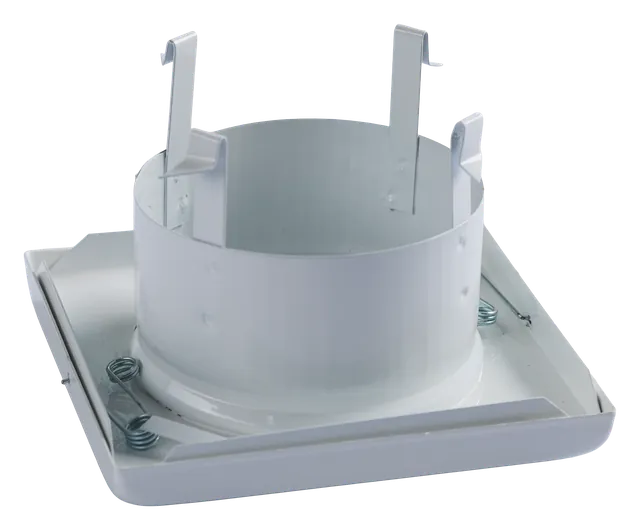

- • Not recommended or suitable for direct flexible duct attachments; designed to be compatible with PVC pipes only. • Ready-to-use surface-mount design with a flat rear profile. Does not require wall drilling or structural recessing, allowing it to sit flush against finished wall lines. • Louver blades feature a 45-degree deflection slant to block internal sightlines and prevent water ingress. • Fully serviceable componentry: Both the front grille face and the internal insect screen can be fully detached for periodic washing and maintenance.
- Design Intent
- Designed specifically for retrofit applications or finished surfaces where wall cutting is restricted. It offers a clean, non-invasive installation profile that lowers labor costs while ensuring long-term maintainability. • Ideal for: Indoor use, Wall exhaust ports, utility rooms, and installations with minimal depth space behind the wall surface.
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Available in two standard configurations: • 7.5” x 7.5” face size for 4" and 6" pipe sleeves • 5.5“ x 5.5“ face size for 4" pipe sleeves
- Optional Accessory
- Insect Screen
