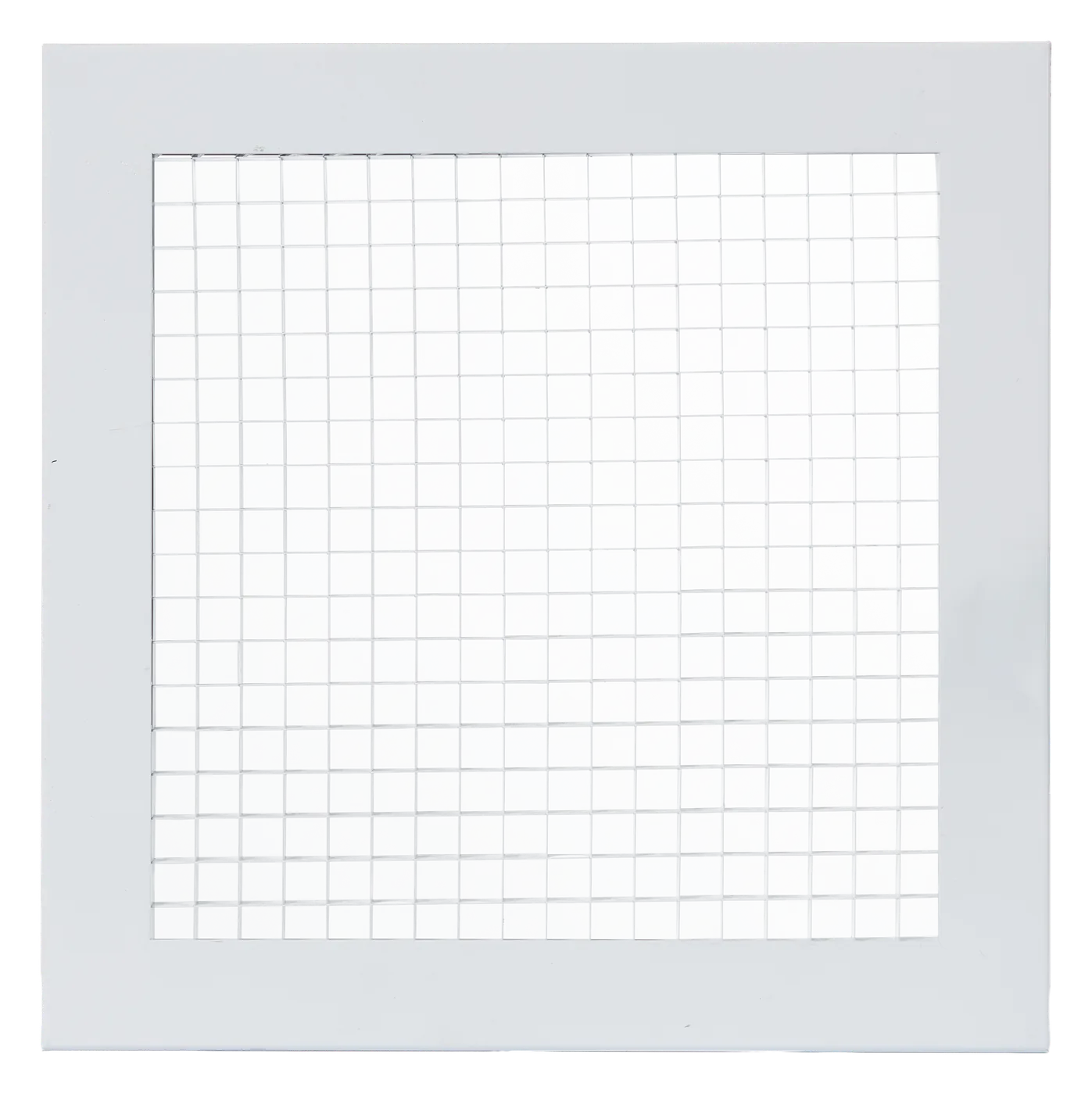

KEGG/KEGG-H

Specifications

Material

Aluminium

Application

Return Air, Exhaust Air, Supply Air for Ceiling or Wall Installation

Functional Features

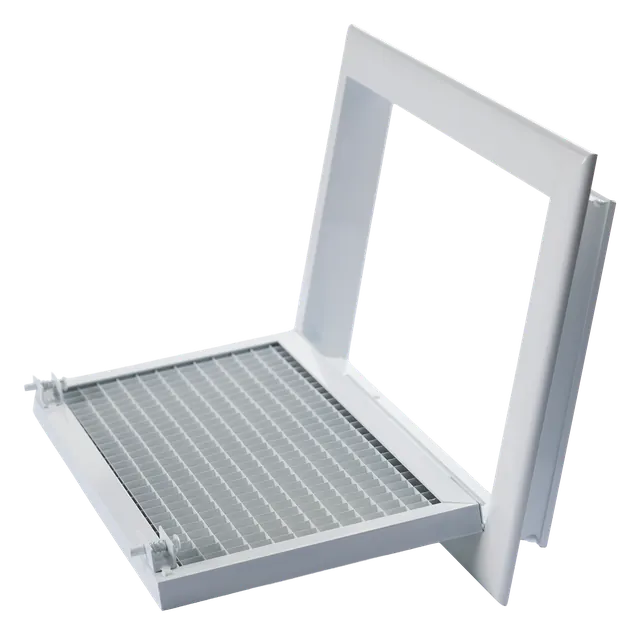

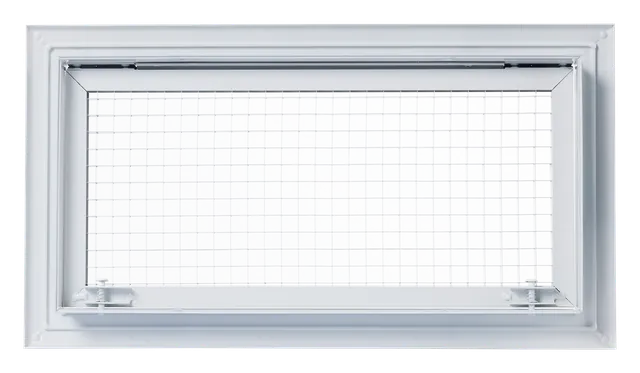

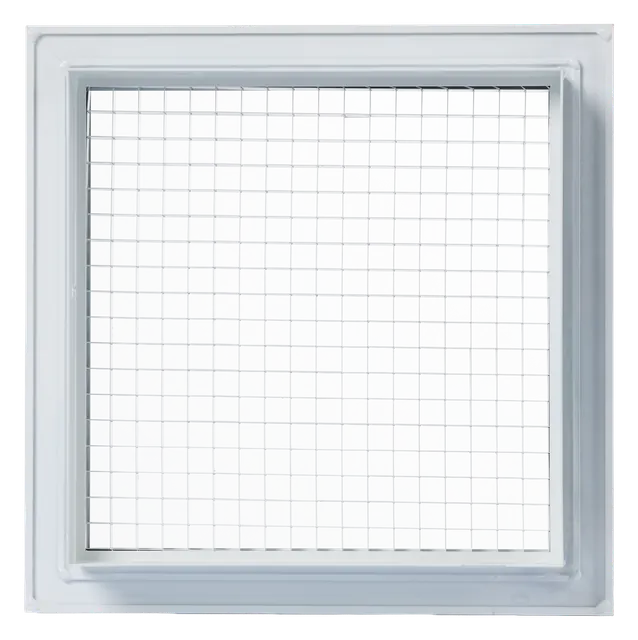

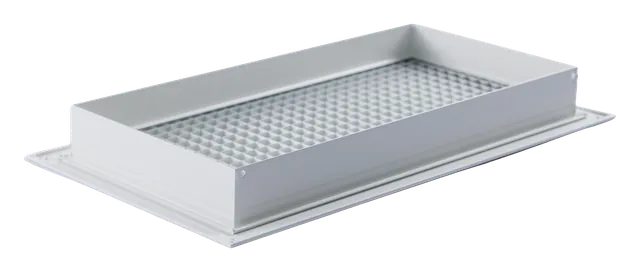

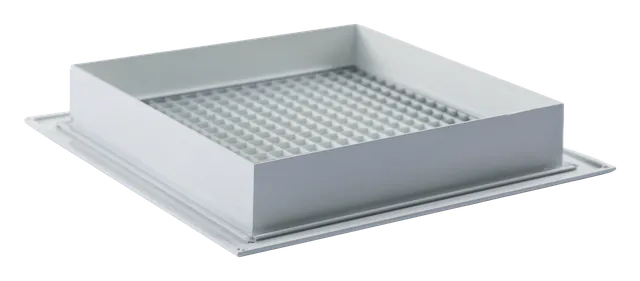

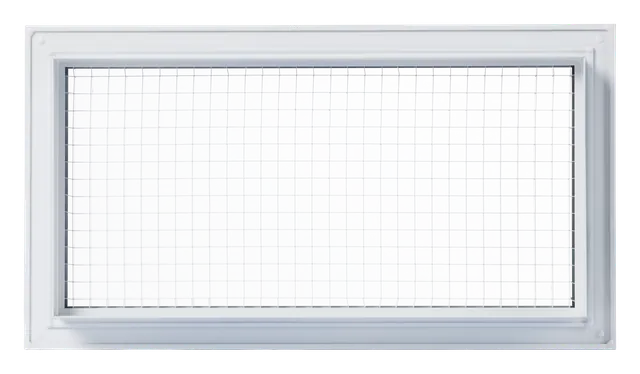

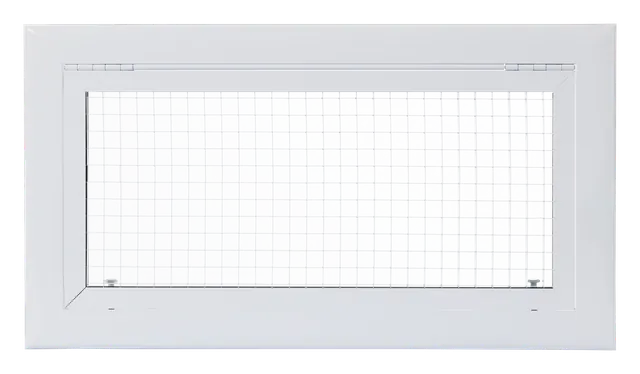

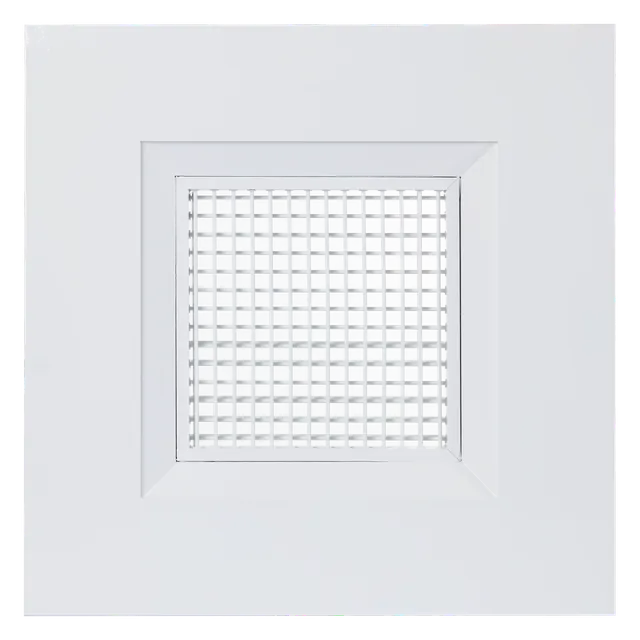

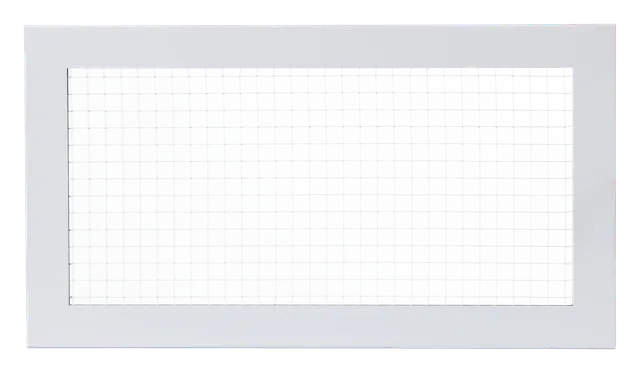

1.3 x 1.3 cm. Lattice Grid •The square grid pattern provides a 90% open free area. When used for Return, it allows massive air volumes to pass rapidly with minimum resistance and ultra-low noise. When used for Supply, it delivers a high-volume, non-deflected straight air throw pattern directly under the grille. Supports 2 structural configurations: 1. Fixed Type (non-removable core). 2. Open Type (push-release latch) allowing the center face to hinge down or detach for routine dust cleaning.

Design Intent

Designed to maximize HVAC airflow efficiency to prevent equipment strain, while presenting a uniform geometric texture. • Ideal for: Commercial buildings, retail stores, lift lobbies, and areas requiring high-volume air transfer with a clean grid look.

Finish

Powder Coated White, Anodized aluminium, or Custom Colors

Size

Standard or Custom Sizes

Optional Accessory

Opposed Blade Volume Control (OBV), Aluminium Filter, Synthetic Filter, or Nylon Filter
