Diffusers & Supply Grilles

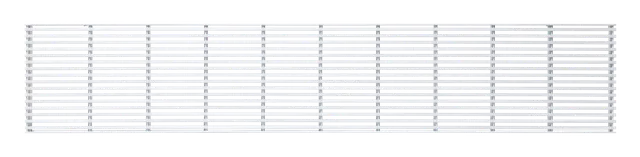

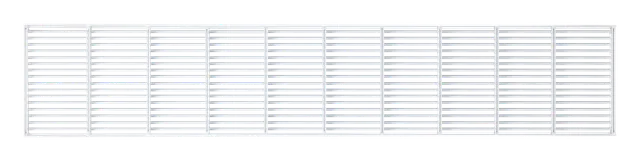

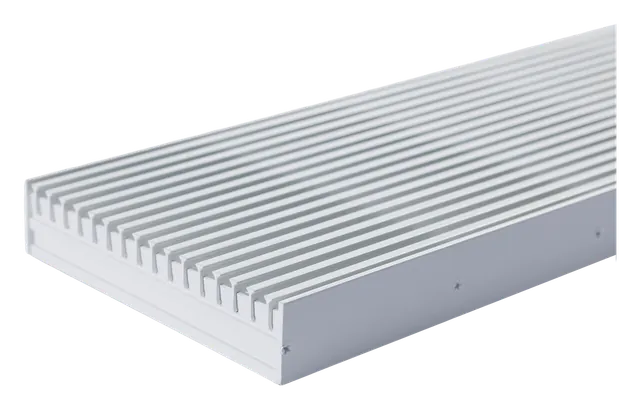

KLBG-FLR
Floor Linear Bar Grille
Supply Air or Return Air for Floor Installation only, specifically engineered to withstand foot traffic and pedestrian loads.
- Material
- Aluminium
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size & Configuration
- Standard or Custom Sizes
- Optional Accessory
- Opposed Blade Volume Control (OBV)
Need a special size or finish? Our team can help.
Specifications
- Material
- Aluminium
- Application
- Supply Air or Return Air for Floor Installation only, specifically engineered to withstand foot traffic and pedestrian loads.
- Functional Features
- Reinforced, extra-thick linear bar profile engineered for heavy-duty pedestrian floor loading: • Constructed with high-grade, thick-gauge extruded aluminum frames and blades to directly support foot traffic and prevent structural bending. • Specially engineered with tight, vibration-damping joint assemblies to eliminate rattle and metallic noise when stepped on. • Incorporates heavy-duty underslung support bars to ensure superior load distribution and maximum structural integrity.
- Design Intent
- Engineered specifically as a highly durable, load-bearing floor terminal to support Underfloor Air Distribution (UFAD) systems while maintaining seamless linear architectural lines. • Ideal for: Perimeter glass curtain wall borders, large reception lobbies, high-traffic exhibition halls, interior corridors, and modern commercial spaces utilizing floor-supply HVAC networks.
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size & Configuration
- Standard or Custom Sizes
- Optional Accessory
- Opposed Blade Volume Control (OBV)
Product dimensions
Scroll the table to view all dimensions.
| Opening Size A | Neck Size B | Height C |
|---|---|---|
| Length x Width | Length x Width | 30 |
Please confirm dimensions and installation clearances with our team before ordering.
