Product appearance may vary with selected size and finish.
Return & Exhaust Grilles

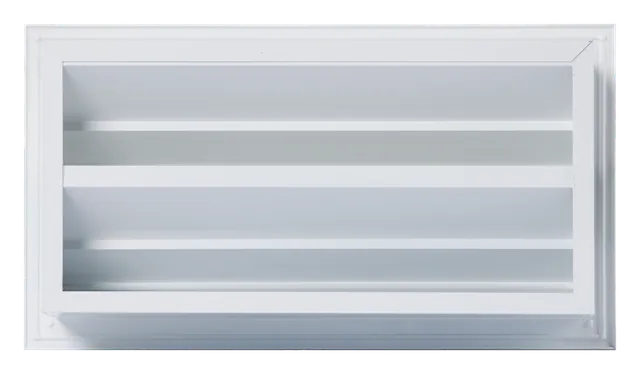

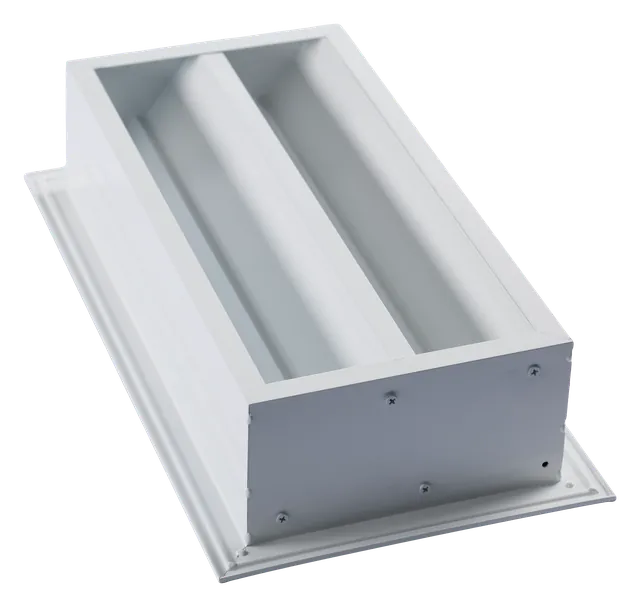

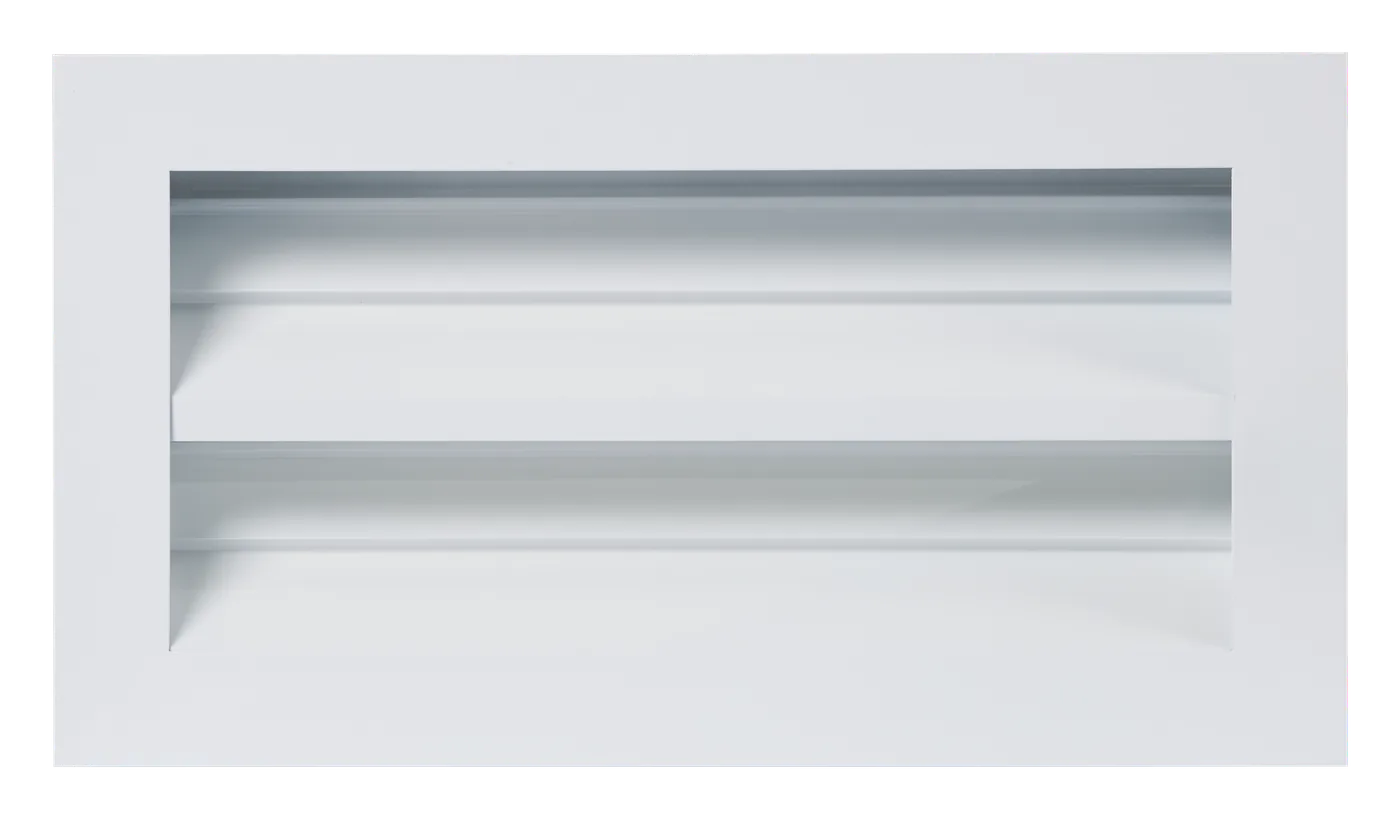

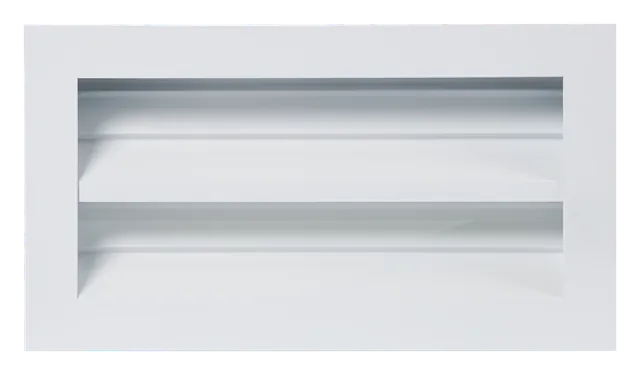

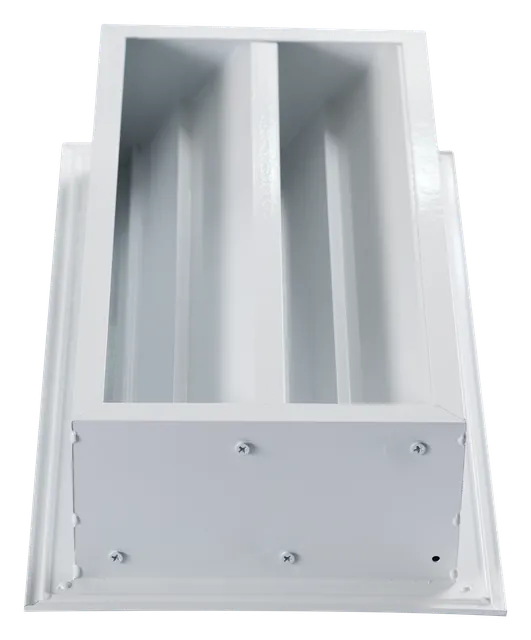

KZ-4”
Weather Louver (4" Blade)
Fresh Air Intake & Exhaust
- Material
- Aluminium
- Application
- Fresh Air Intake & Exhaust
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
Need a special size or finish? Our team can help.
Specifications
- Material
- Aluminium
- Application
- Fresh Air Intake & Exhaust
- Functional Features
- Fixed 4" Z-Blades Extra-deep 4-inch structural Z-profiles maintaining a full 50% Free Area. Engineered to handle massive airflow volumes while providing the highest level of defense against severe storm-driven rain.
- Design Intent
- Ultimate Storm & Driving Rain Defense • Designed with a massive 4-inch blade depth acting as a multi-stage physical trap, completely stopping high-velocity driving rain and wind-driven water from entering critical internal areas. • Ideal Locations: High-rise building walls exposed to strong winds, major heavy-duty plant rooms, large air compressor enclosures, and coastal areas.
- Finish
- Powder Coated White, Anodized aluminium, or Custom Colors
- Size
- Standard or Custom Sizes
- Optional Accessory
- • Insect Screen • Bird Screen
Product dimensions
Scroll the table to view all dimensions.
in MM
| Opening Size A | Neck Size B | Height C | Face Size D | Neck to Edge Distance E |
|---|---|---|---|---|
| Length x Width | (Length - 10mm) x (Width - 10mm) | 100 | (Neck Length + 50mm) x ( Neck Width + 50mm) | 25 |
Please confirm dimensions and installation clearances with our team before ordering.
